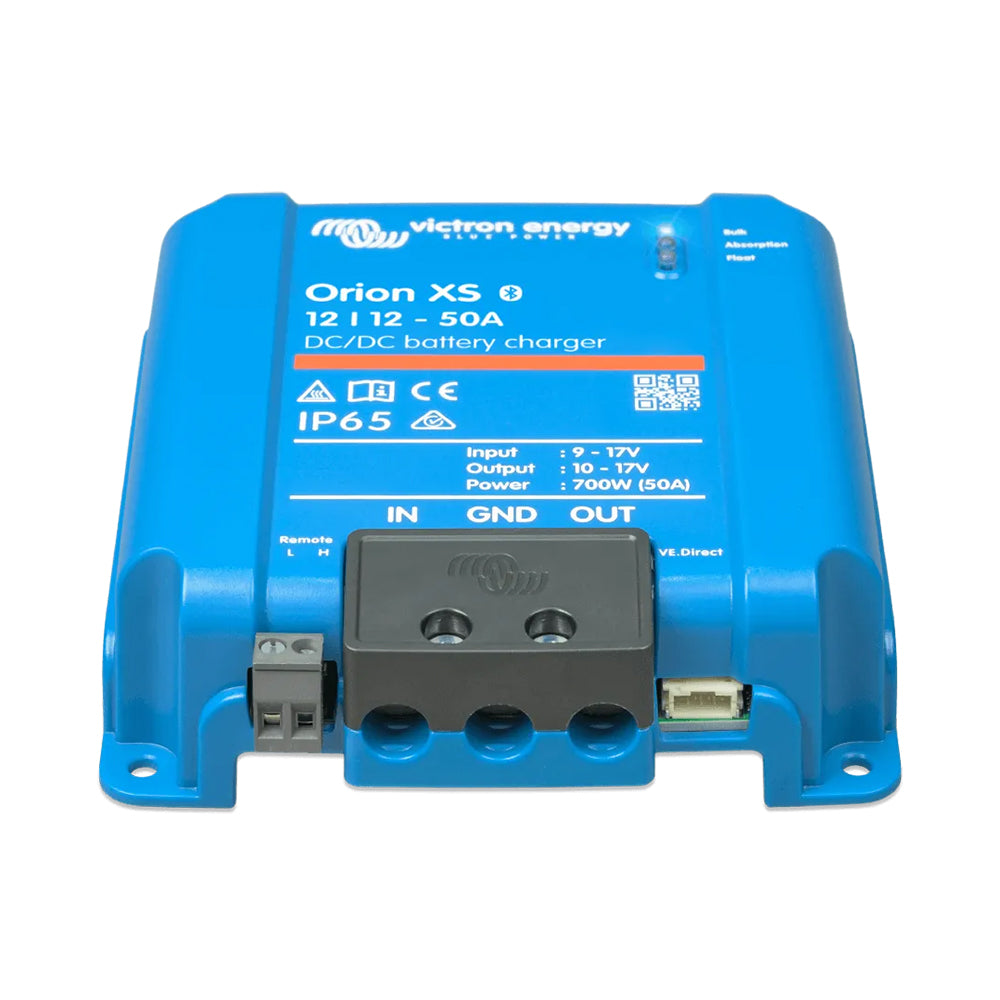

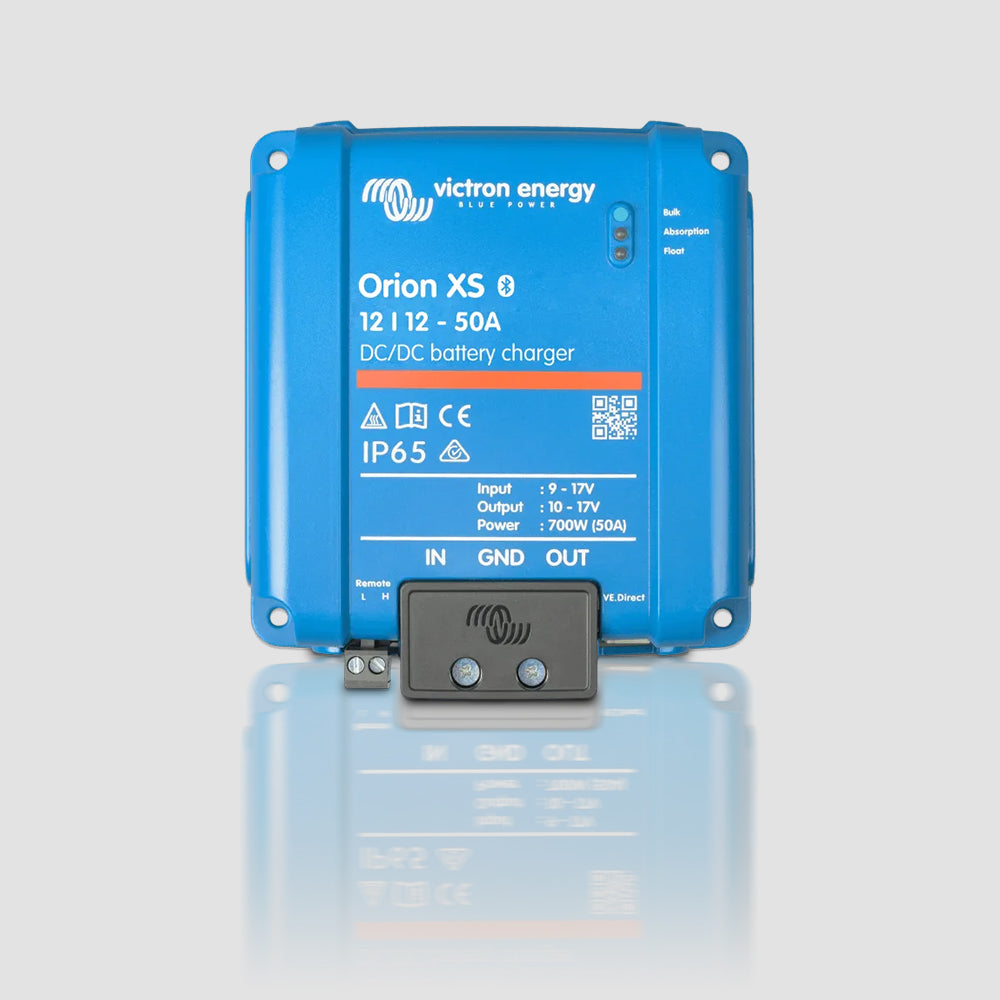

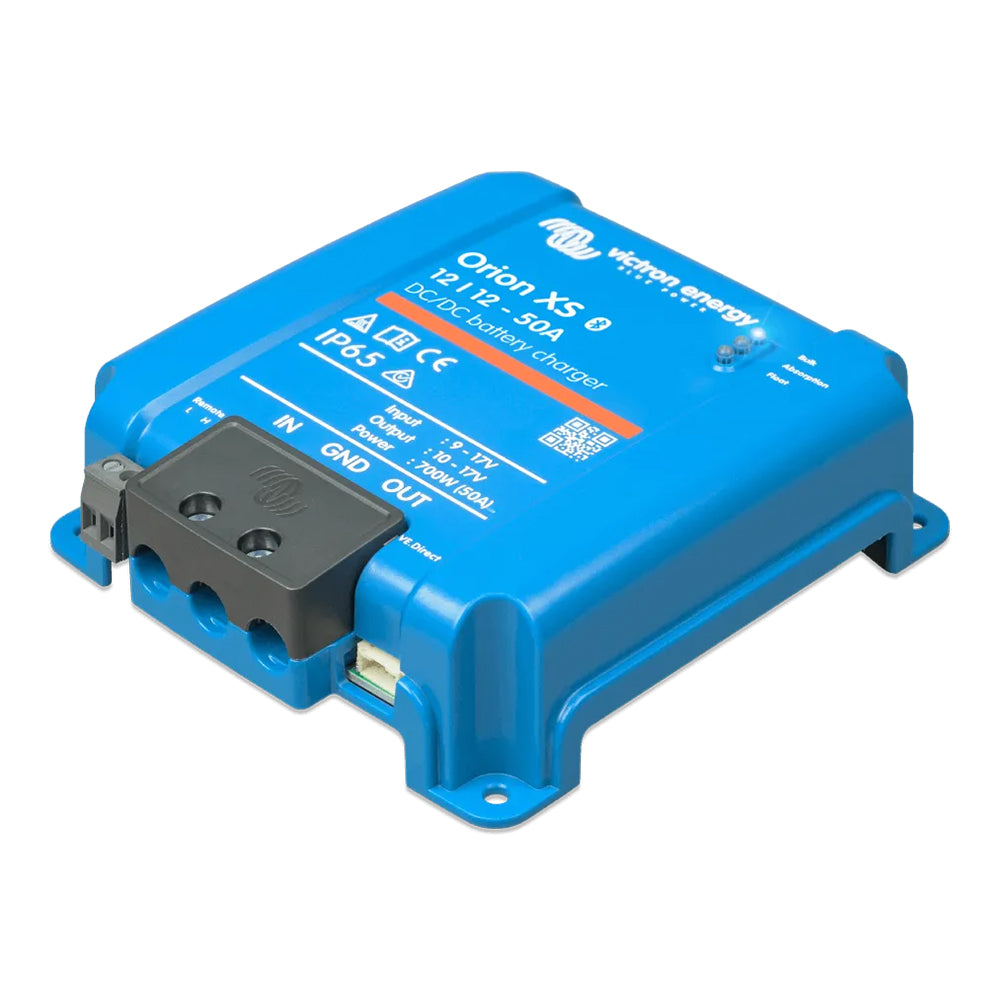

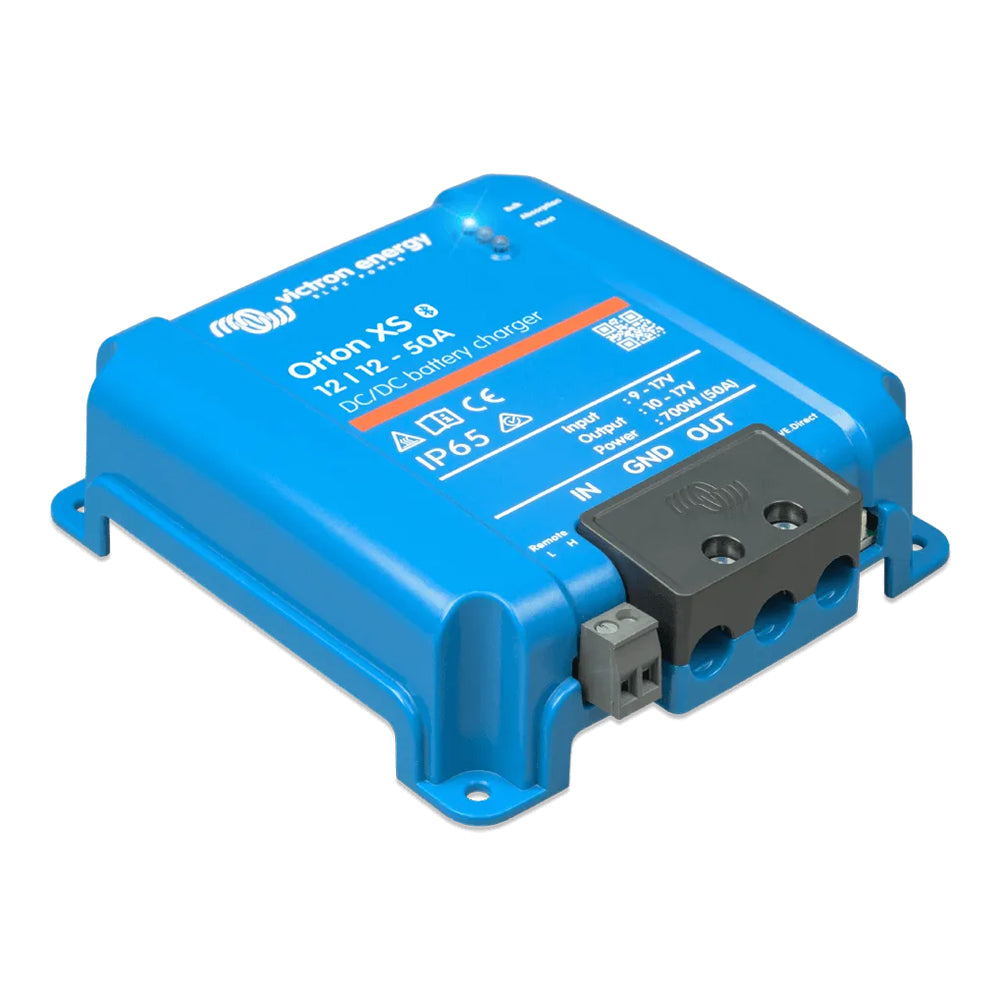

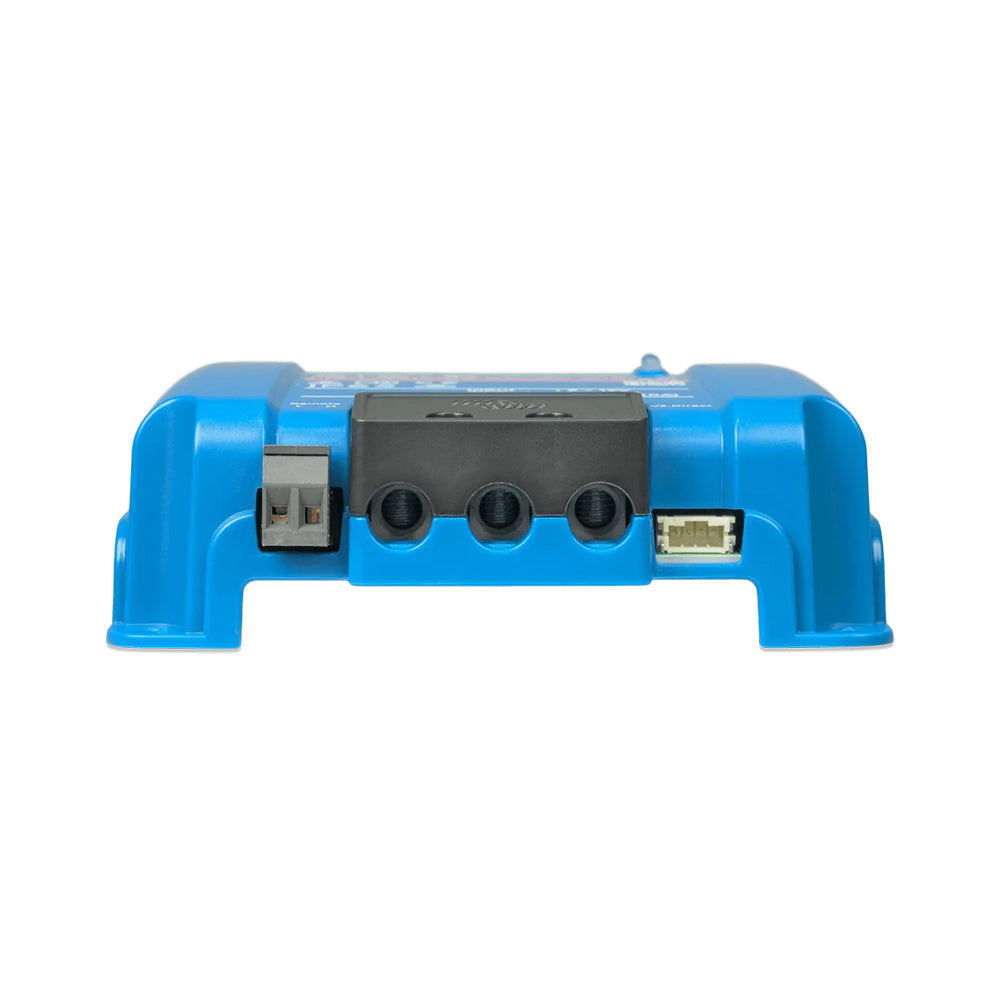

Victron Orion XS 12/12 -50A Battery Charger

Victron Orion XS 12/12 -50A Battery Charger

The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.

This device not only ensures top-tier performance but also guarantees the safety of your system.

Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminium circuit board technology means less heat, without the need for fans.

As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.

Regular price $495.00
Regular price Sale price $495.00
Sale Sold out

Features

Specifications

Product Support

  • Fully configurable
  • Efficient cooling
  • Engine running detection
  • Works with VictronConnect
  • Intelligent charge algorithms
  • Remote monitoring optional

Parallel to increase output current
An unlimited number of Orion XS devices can be connected in parallel, for easy output current scaling to meet system requirements.

Smart alternator compatibility
With its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieving a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.

Adaptive charge algorithm
The Orion XS features customizable and preset charging algorithms for lithium and lead-acid batteries, ensuring optimal recharging, for both shallow and deep discharges.

Complete electronic protection
The Orion XS comes equiped with comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce the output power when maximum product temperature is reached.

Low temperature shutdown & undervoltage protection
To prevent damage of lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.

Dust & waterproof
The Orion XS is designed to withstand dust and water pollution and has an IP65 classification.

Click on the links to view/download additional resources.

User Manual

Data Sheet

Enclosure Dimensions

Victron Connect Downloads:

Download on the App Store

Get it on Google

Available on the Mac App

Download for Windows

For more information, please visit the Victron energy website HERE.
