RuuviTag Bluetooth Sensor

RuuviTag Bluetooth Sensor

Measuring Made Easy

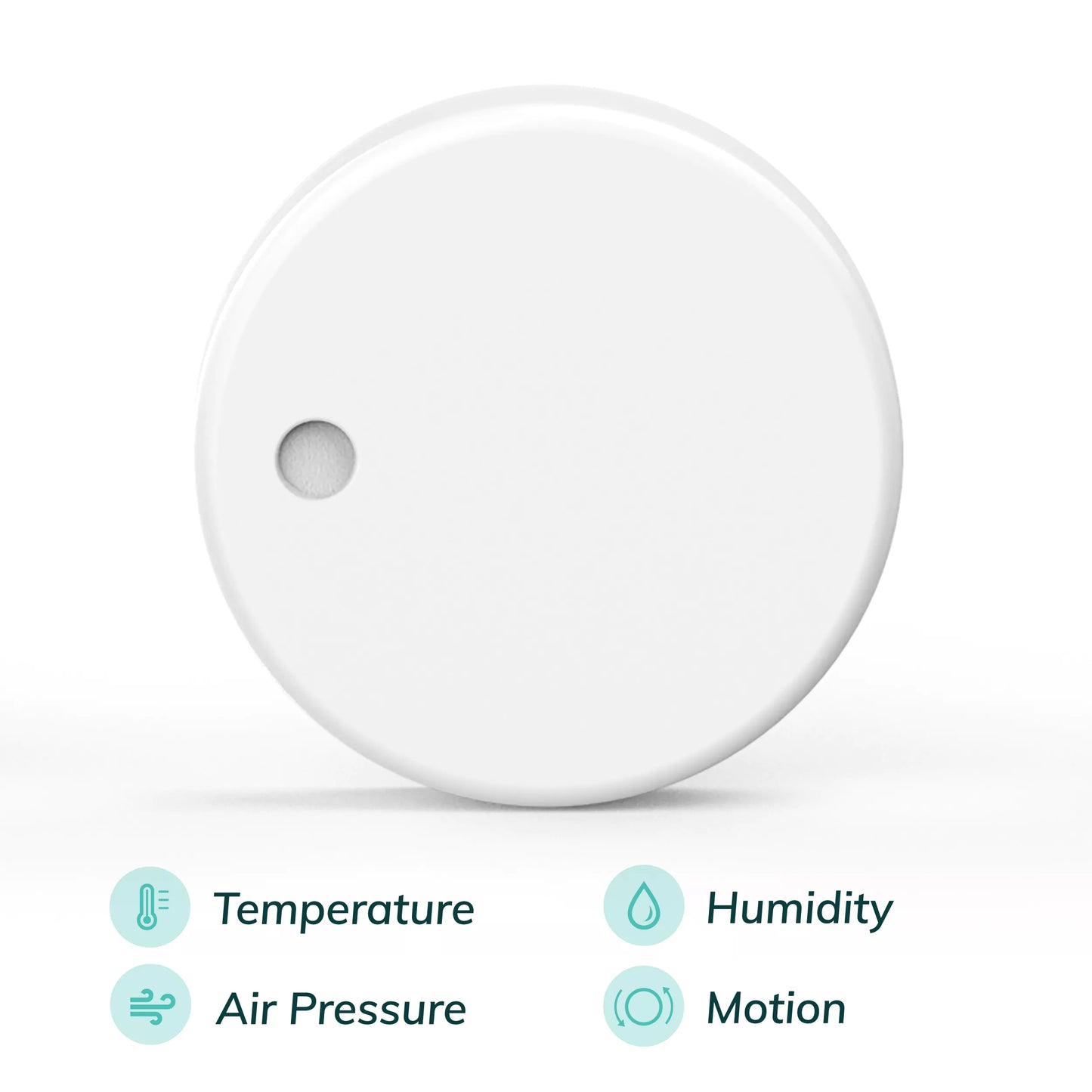

RuuviTag is a wireless Bluetooth sensor node that measures temperature, air humidity, air pressure and movement. You can read live measurements and history data directly on your smartphone using Ruuvi’s mobile app for Android and iOS.

Compatible with Victron Cerbo GX

Regular price $54.99
Regular price Sale price $54.99
Sale Sold out

Features

Specifications

Product Support

  • Easy to use
  • 1 minute quick start
  • Multiple sensors in one device
  • Multi-year battery lifetime
  • FREE mobile application

Recommended operating temperature
-20 ºC to +70 ºC (with a special temperature range battery longer battery lifetime can be achieved)

Maximum operating temperature
-40 ºC to +85 ºC (electronics and enclosure)

Battery
1000 mAh CR2477 Li/MnO2 battery (included)

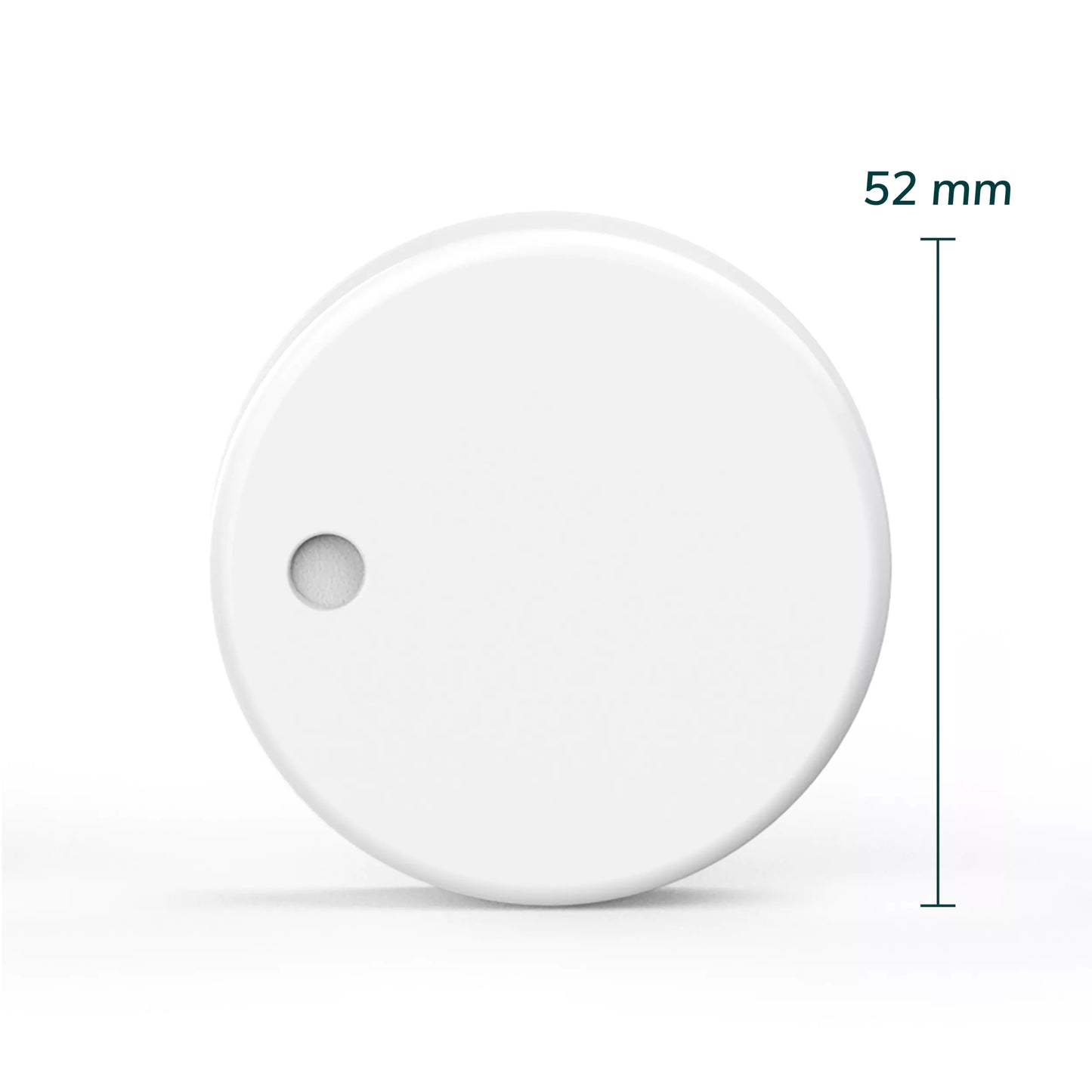

Diameter
52,00 mm

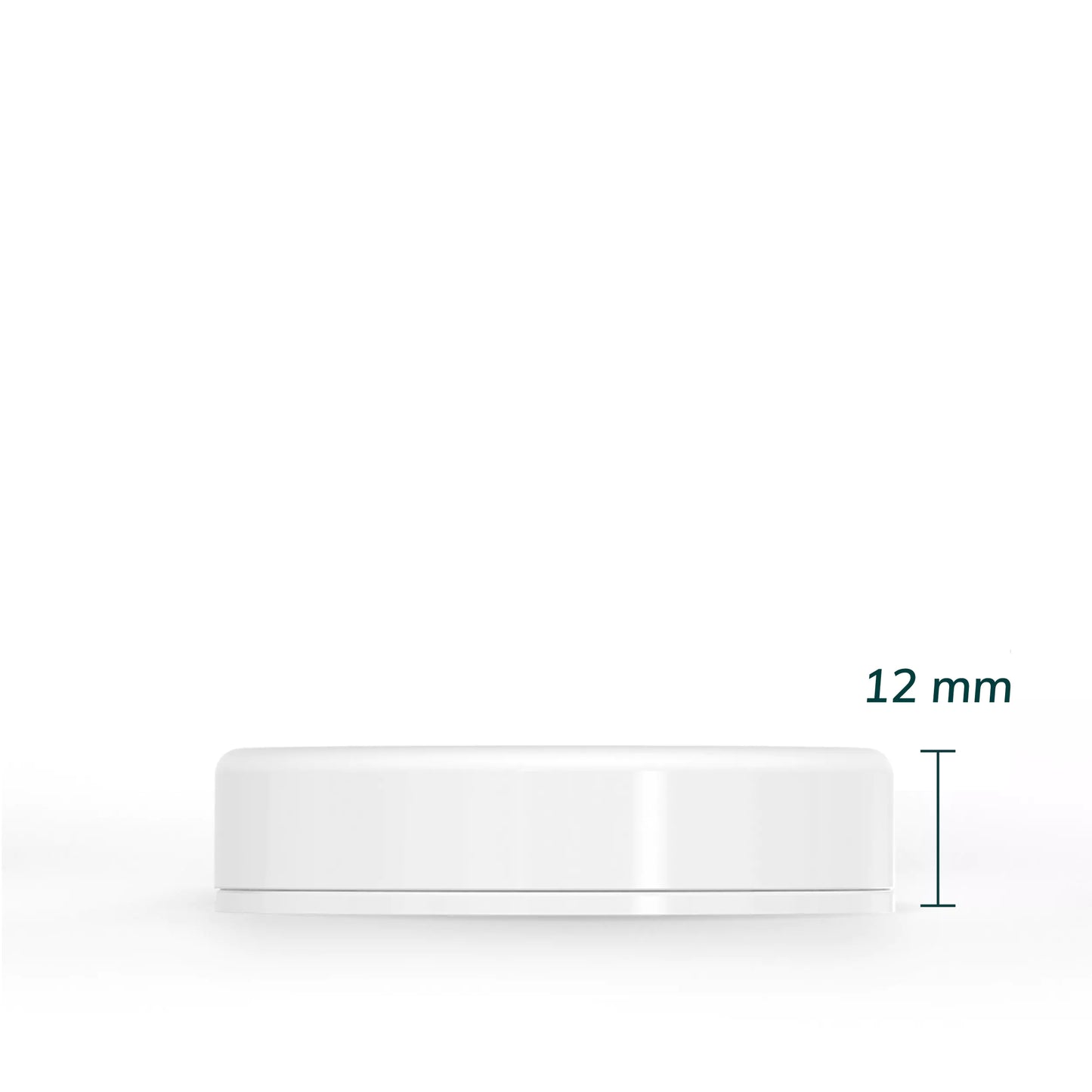

Height
12,55 mm

Weight
30 g

Temperature units (on Ruuvi Station)
Celsius, Fahrenheit, Kelvin

Humidity units (on Ruuvi Station)
Relative air humidity, absolute humidity, dew point

Pressure units (on Ruuvi Station)
Pa, hPa, mmHg, inHg

Temperature sensor accuracy
Typical absolute accuracy ±0,2 °C @ 5...60 °C, output resolution 0,01 °C

Humidity sensor accuracy
Typical absolute accuracy ±2 %, 20...80 %, 25 °C

Pressure sensor accuracy
Typical absolute accuracy ±1 hPa

Main chip
Nordic Semiconductor nRF52832

Ambient sensor
Sensirion SHTC3, temperature and air humidity

Pressure sensor
Infineon DPS310

Accelerometer
STMicroelectronics LIS2DH12

Radio protocols
Bluetooth (default), Wirepas Mesh, Lumenradio Mesh, Bluerange Mesh, ANT, Other 2.4 GHz proprietary protocols

NFC
Embedded NFC™-A tag antenna

Enclosure material
Polycarbonate

Waterproofing
IP67, not suitable for continuous immersion. When immersed, Goretex membrane is recommended to be sealed with waterproof tape. Standard enclosure is not suitable for high humidity installations with condensation risks.

Watch this video to see how easy RuuviTag is to set up!

Click on the links to view/download additional Resources.
