HeartStart FRx AED with Ready-Pack Configuration - Defibrillator
HeartStart FRx AED with Ready-Pack Configuration - Defibrillator

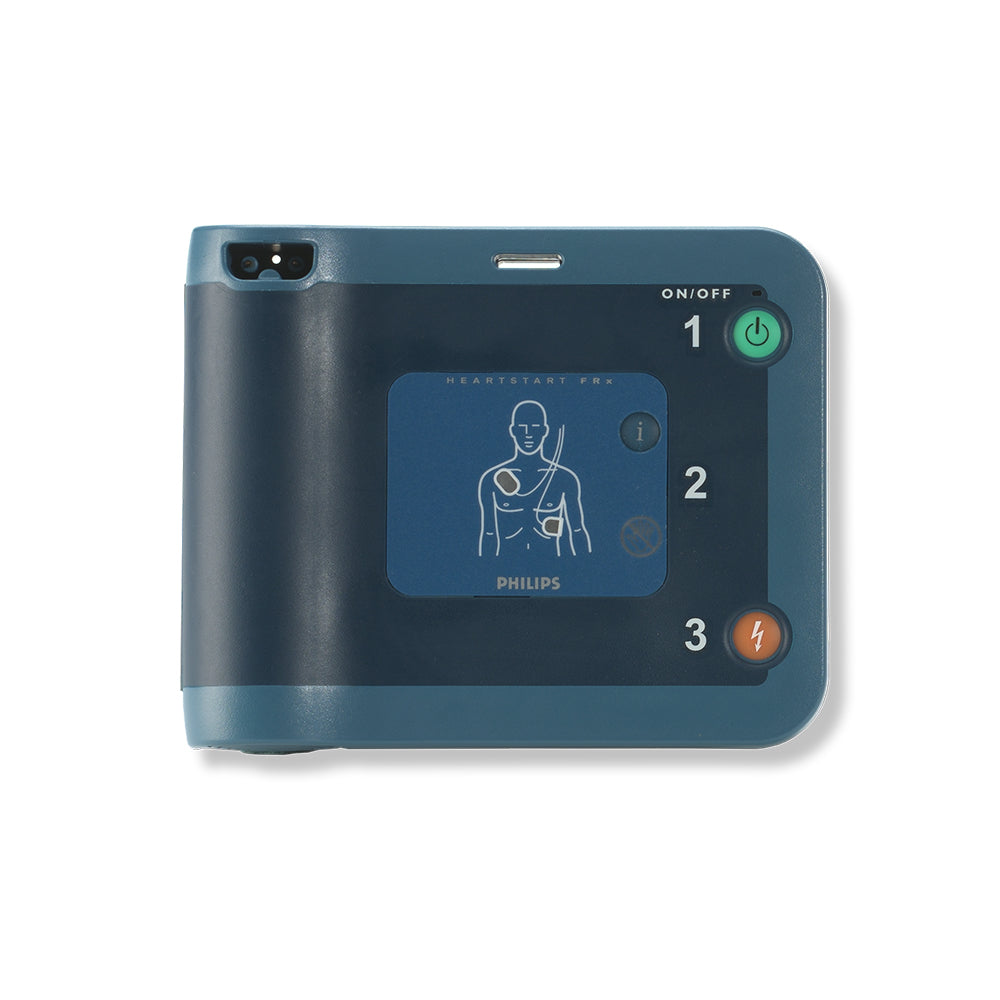

The Philips HeartStart FRx defibrillator features intuitive, step-by-step voice instructions, including CPR guidance, and an audible metronome to help guide basic life support (BLS) responders while treating a suspected sudden cardiac arrest (SCA) Pre-connected SMART Pads II can be used for both adults and children. Rugged, lightweight and reliable, it can withstand rough handling and extreme temperatures. When every minute counts, Philips HeartStart FRx is the partner by your side. Side by side. Step by step.

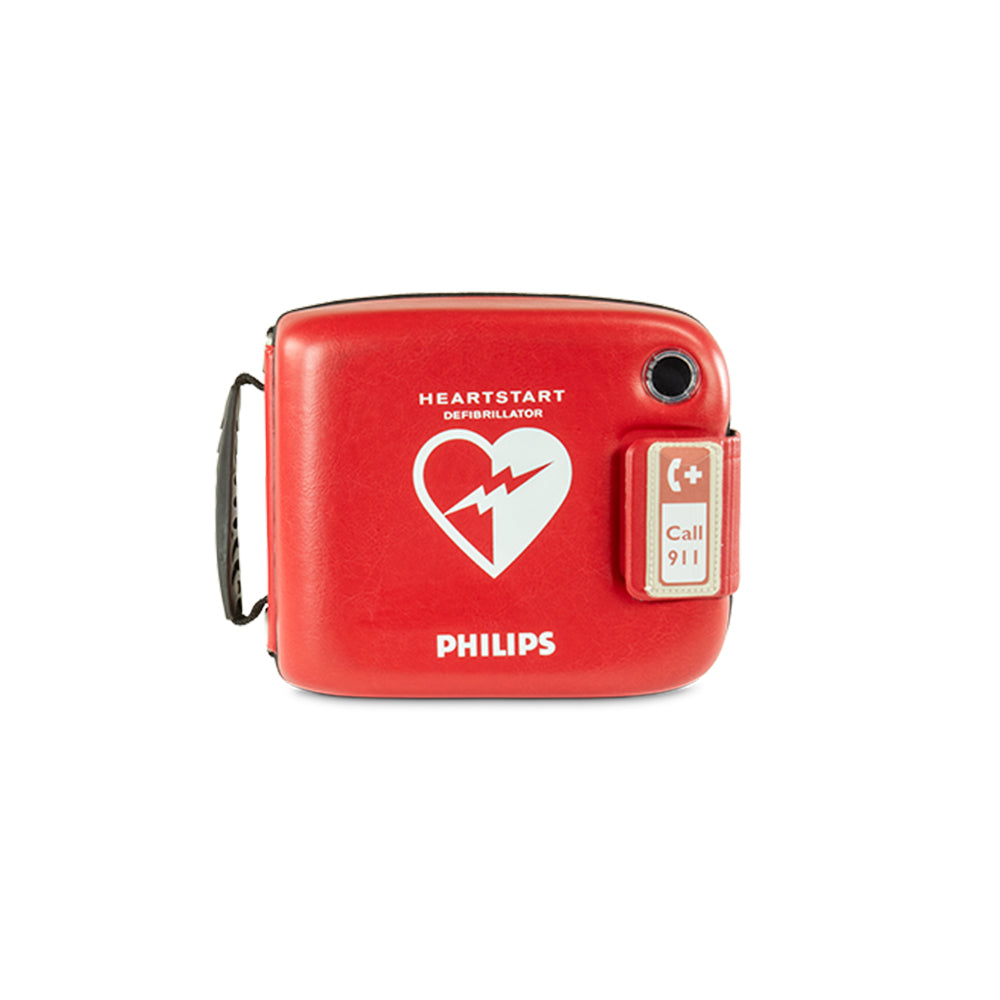

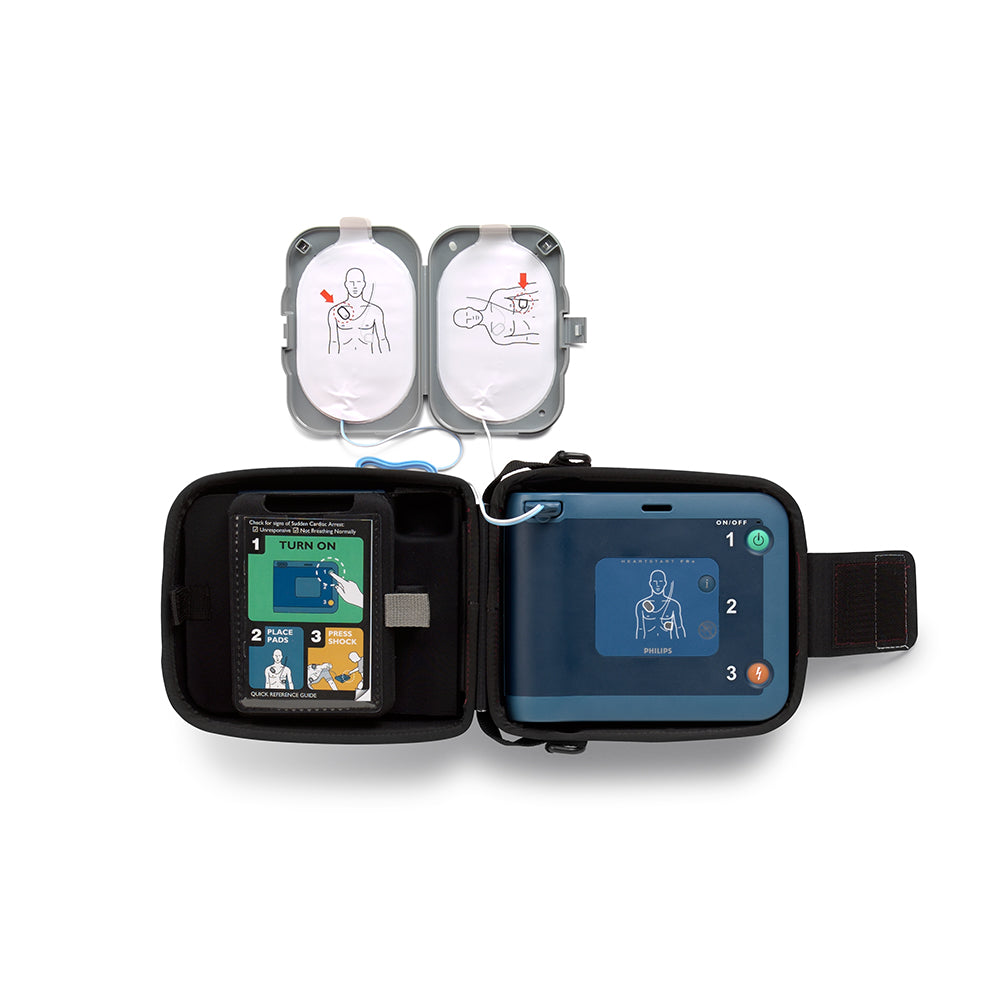

*Includes a carrying case, installed pad, installed battery, and spare adult pad.
Features
Specifications
Product Support
Patented technology. Proven therapy.
Real-time, step-by-step voice commands paced to your actions, and an audible metronome and CPR guidance assist the responder. When treating an infant or child, simply insert the optional infant/child key and the FRx adjusts instructions and therapy.
Easy as 1–2–3
Patented Quick Shock feature allows the FRx to typically deliver a shock within 8 seconds after CPR.1 Studies show that minimizing time to shock after CPR may improve survival..2-5 1. Press the green On/Off button, which activates voice instruction and visual icons. 2. Place the pads on the patient as directed. 3. When advised by the device, press the orange Shock button.
Designed to work where you need it
Lightweight, rugged and reliable, the Philips HeartStart FRx defibrillator can withstand rough handling, extreme temperatures, and dusty or wet surfaces. Designed for use in harsh settings, it can withstand up to 500 kg (1,100 lbs) and drops from 1.2 m (4 ft).
Simplified maintenance
Pre-connected SMART Pads II can be used for both adults and children. Once installed and activated, the FRx is easy to maintain. It performs a series of automatic self-tests, daily, weekly, and monthly to check pad readiness and verify functionality and calibration of circuits and systems. It can last up to four years between battery replacements.
Model Number
- 861304
Waveform
- Truncated Exponential Biphasic. Waveform parameters adjusted as a function of each patient’s impedance.
Therapy
- Adult defibrillation peak current: 32A (150J nominal) into a 50 ohm load. Pediatric defibrillation (with optional Infant/Child Key installed): 19A (50J nominal) into a 50 ohm load.
Battery
- Typically 4 years when stored and maintained according to directions provided in Owner’s Manual. Standby life (after insertion):
Protocol
- Protocol Device follows preconfigured settings. Defibrillation and CPR protocol can be customized using HeartStart Event Review or HeartStart Configure software.
Quick Shock
- Able to deliver a shock after the end of a CPR interval, typically in eight seconds.
Size
- 2.4 x 7.1 x 8.9 inches (6 x 18 x 22 cm) H x D x W
Weight
- With battery and pads case: 3.5 lbs (1.5 kg)
- Without battery or pads case: 2.6 lbs (1.2 kg)
For more information on this product, please visit the Philips website.
