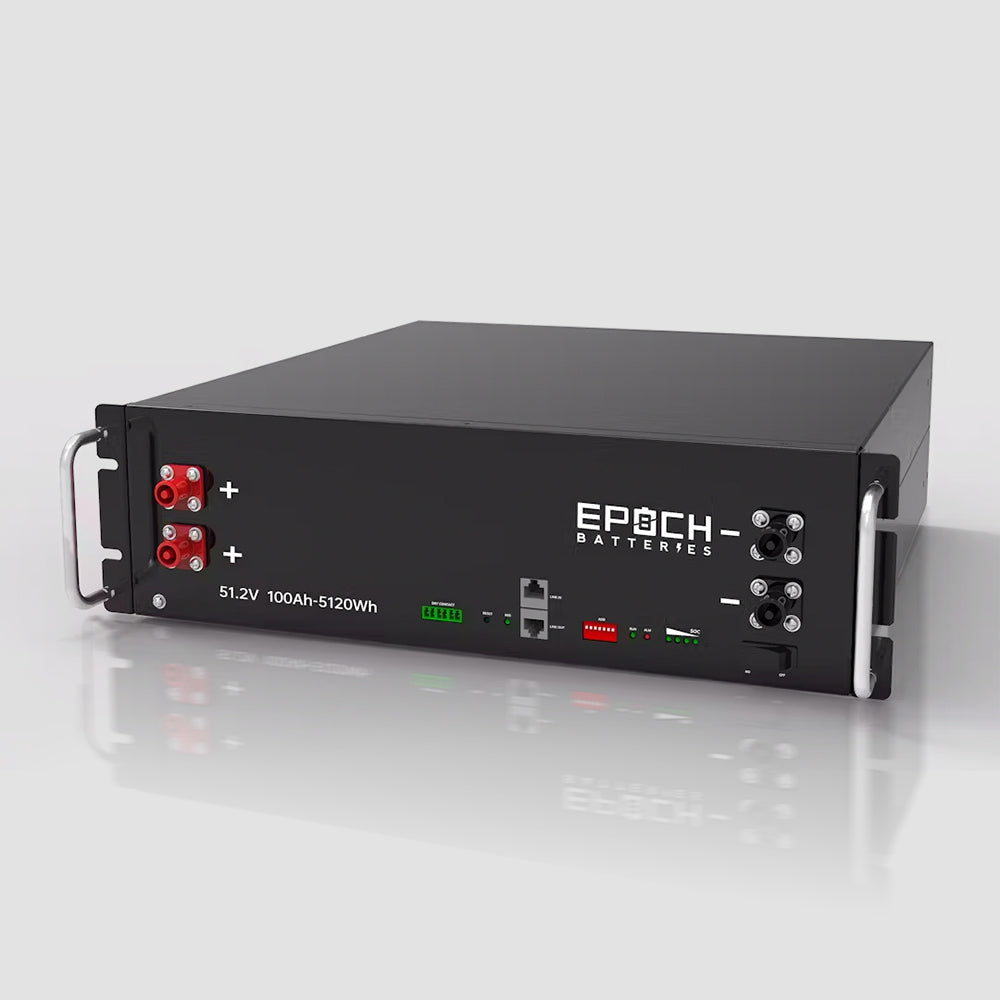

Epoch Self-Heating Server Rack Lithium Battery

Epoch Self-Heating Server Rack Lithium Battery

  • IP 20 Weatherproof
  • 6000+ Cycles
  • Advanced BMS
  • Internal Heating
  • Safe & Reliable

* Due to the specialized nature of batteries, shipping rates vary based on destination and courier requirements. To ensure the best shipping experience, we collaborate with reputable freight couriers to determine accurate rates once you’ve contacted us with your order and provided your address.

$2,170.00
$2,170.00
Sale Sold out
Contact Us To Order

Features

Specifications

Product Support

  • LiFePO4 Chemistry
  • 100Ah Capacity - 5120kWh
  • SELF-HEATING - Charge as low as -25°C
  • 100A Max Continuous Discharge (119A 5mins Discharge) (200A 15sec Peak Discharge)
  • CAN/RS485 Communication
  • Compatible INVERTER list - Victron/Sol-Ark/Solis/Growatt/Studer/Goodwe/Sunsynk/Voltronic/ALPHA-OUTBACK/Deye/Sofar/SMA
  • LUXPOWER/Schneider/TBB/MPP/SAJ/MEGAREVO

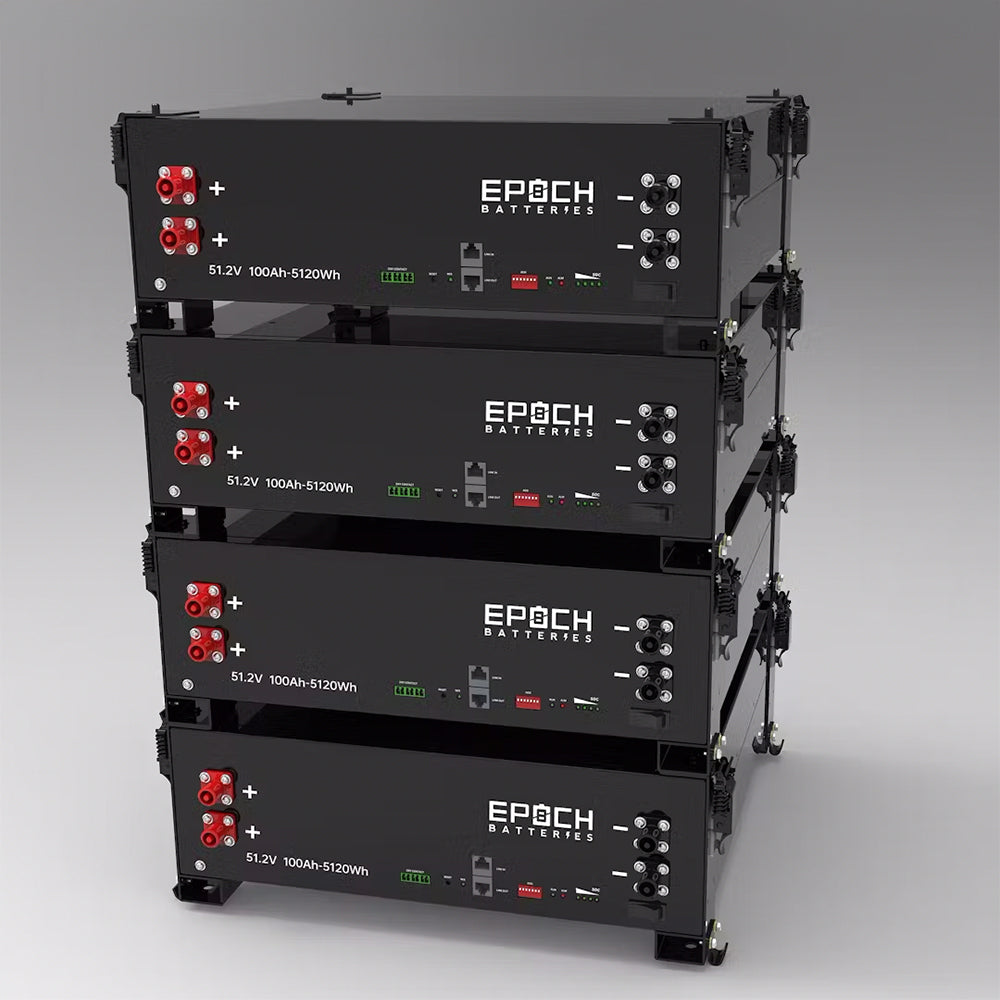

  • Max 32 in parallel, Plug & Play
  • 6000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty

WEIGHT
101 lbs

DIMENSIONS

  • Length:1 7.4"
  • Width: 18.1"
  • Height: 5.2"

CONFIGURATION

  • Cell Configuration: 16S1P
  • Chemistry: LiFePO4

CURRENT

  • Ah Capacity: 100Ah
  • Max Continuous Discharge Amps: 100A
  • Max Charge Current Amps: 70A
  • Max Discharge Peak Current Amps: 200A @ 15sec
  • Series | Parallel: Max (32) in Parallel, Plug & Play

VOLTAGE

  • Voltage: 51.2V
  • Max Charge Voltage: 56.0V
  • Operating Voltage Range: 48.0V - 56.0V

TEMPERATURE

  • Charge Temp Range: -10°C (14°F) / 50°C (122°F) (with heating)
  • Discharge Temp Range: -20°C (-4°F) / 50°C (122°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F)

Click on the links to view/download additional resources.

User Manual

Data Sheet

Test Report
