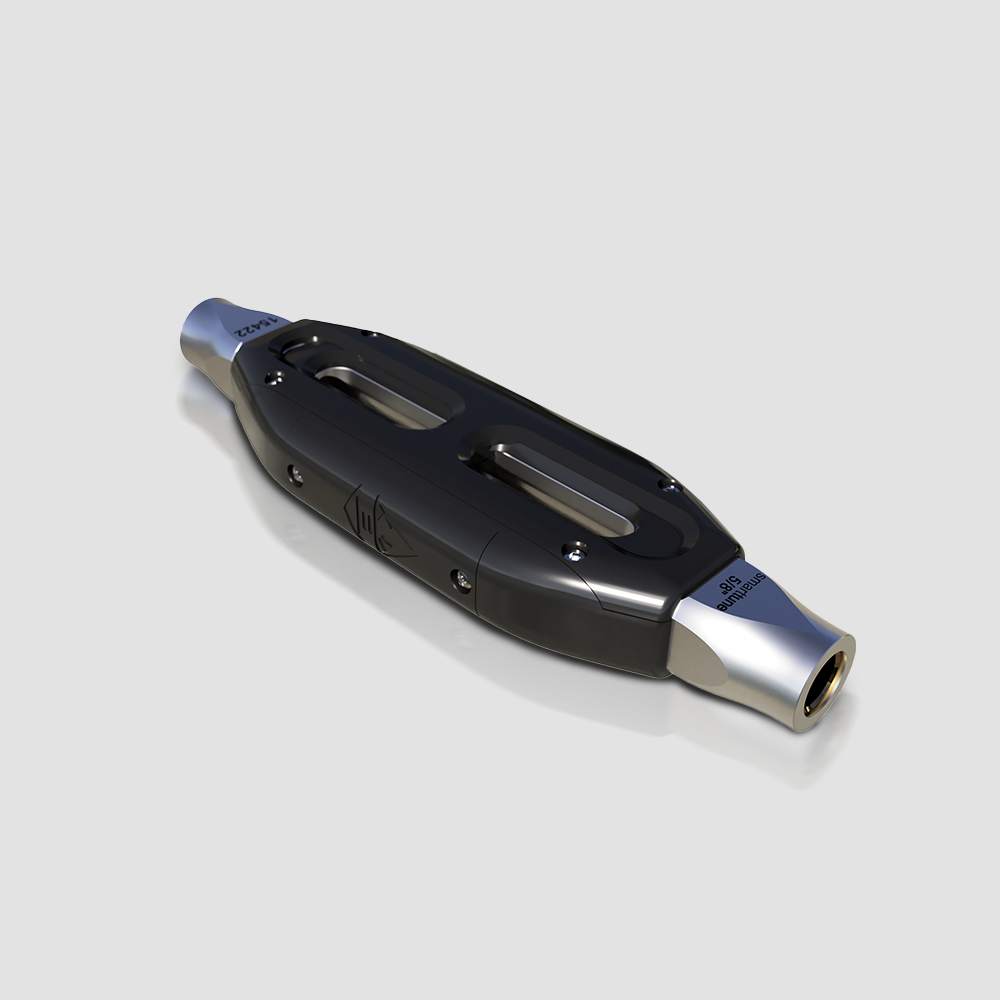

Cyclops Marine SmartTune 5/8” Load Sensor

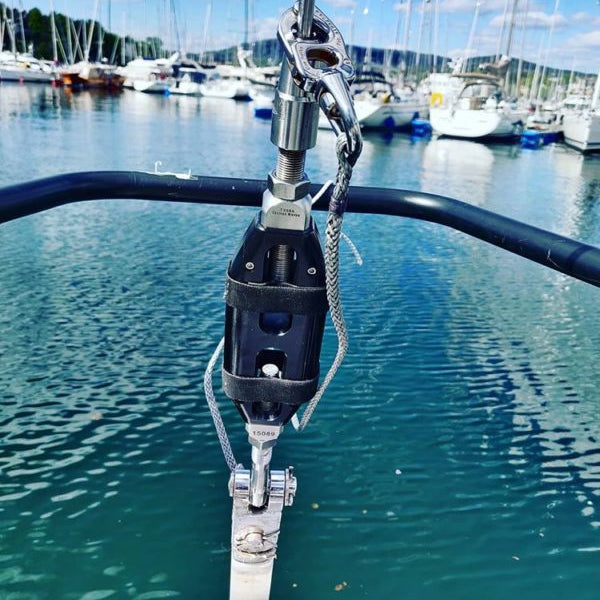

• Easily replaces existing rigging turnscrew
• Waterproof beyond IP68
• 2x AAA batteries power supply
• Approx 16 months battery life
• Adjustable data rate via smartfittings app
• Wireless connection to your phone via the smartfittings app
• Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX
• Wireless connection to electronic boat displays via the Cyclops gateway
• Data log for analysis stored in smartfittings app and Cyclops gateway
• Lightweight and low windage
• Accurate to +/- 1% of maximum working load
• Designed to fit rigging with relevant working loads

• Thread size 5/8″
• Calibrated load 3800kg
• Breaking load 9500kg
• Sensor dimensions 65 x 230 x 31mm
• Sensor weight 620g
• 2 x AAA batteries power supply
