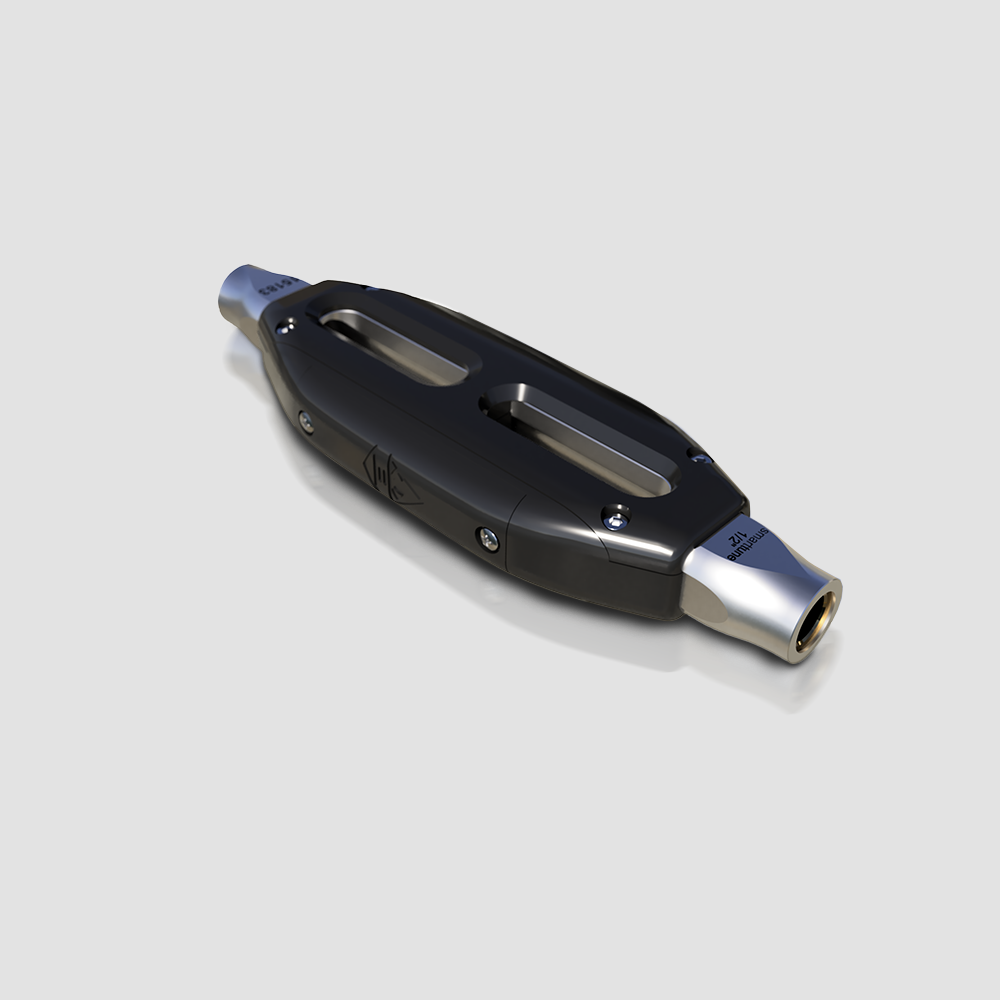

Cyclops Marine SmartTune 1/2” Load Sensor

• Easily replaces existing rigging turnscrew
• Waterproof beyond IP68
• 2x AAA batteries power supply
• Approx 16 months battery life
• Adjustable data rate via smartfittings app

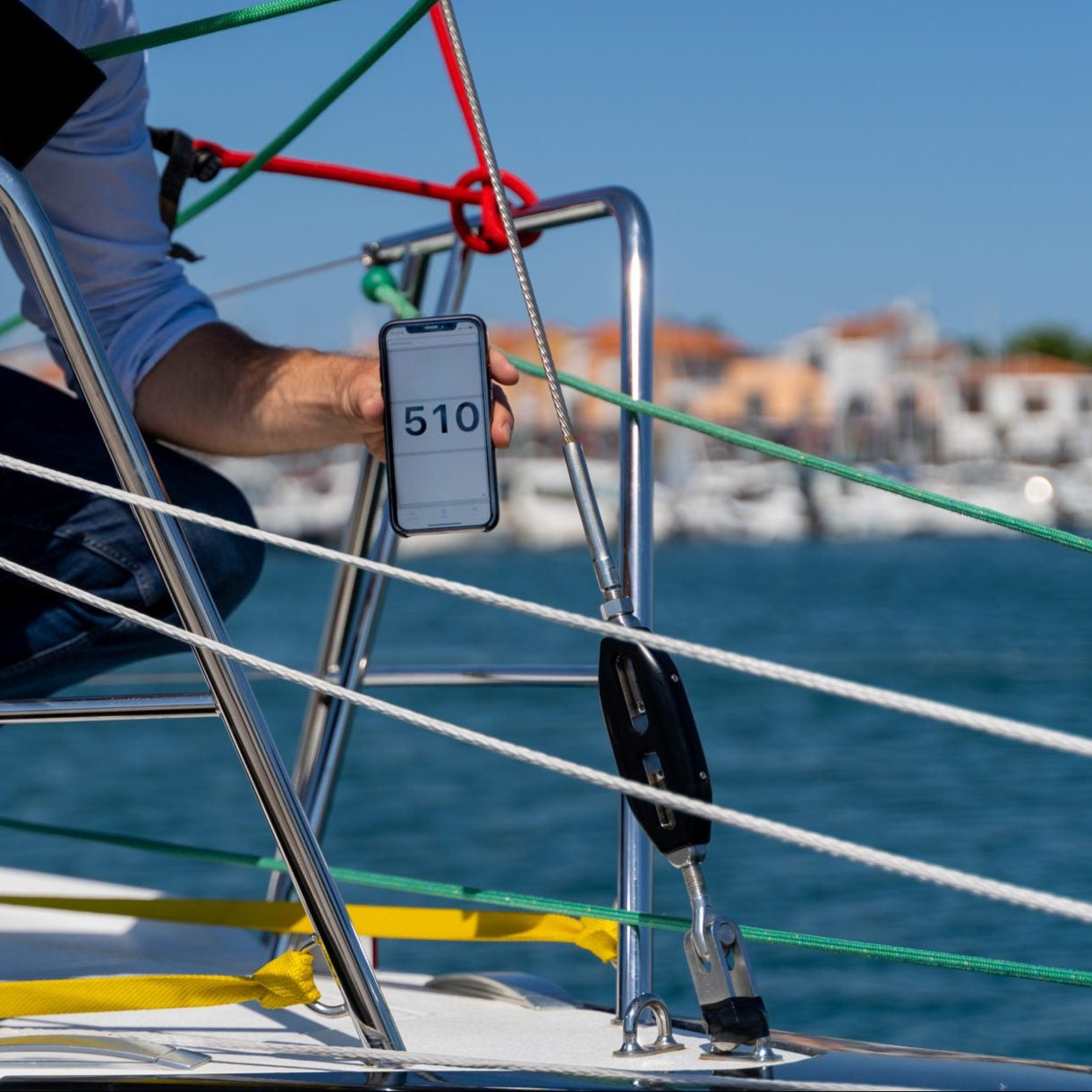

• Wireless connection to your phone via the smartfittings app
• Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX
• Wireless connection to electronic boat displays via the Cyclops gateway
• Data log for analysis stored in smartfittings app and Cyclops gateway
• Lightweight and low windage
• Accurate to +/- 1% of maximum working load
• Designed to fit rigging with relevant working loads

• Thread size 1/2″
• Calibrated load 2500kg
• Breaking load 6200kg
• Sensor dimensions 60 x 170 x 26mm
• Sensor weight 390g
• 2 x AAA batteries power supply
