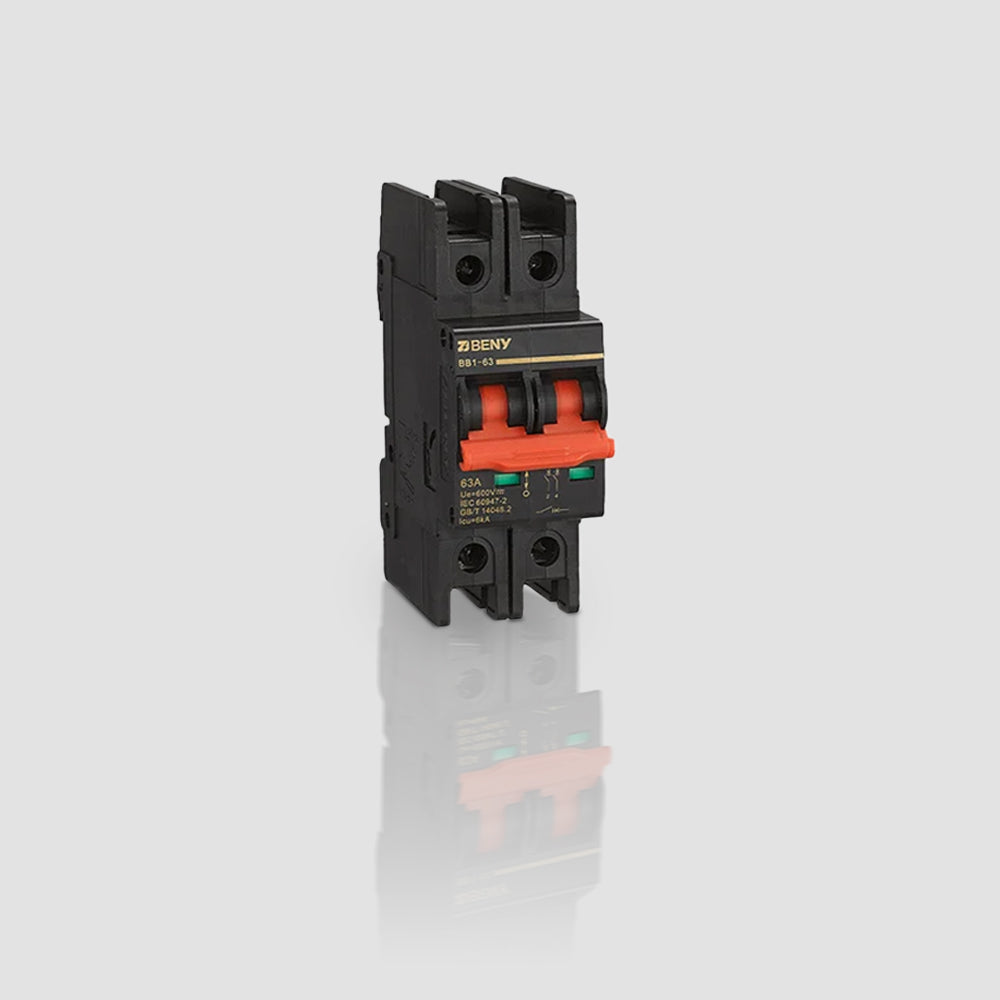

BENY DC Mini Circuit Breaker - 2 Poles

BENY DC Mini Circuit Breaker - 2 Poles

The BB1-63 modular miniature circuit-breakers can be used in solar DC circuits up to 1200 VDC (4-poles execution). Application in solar DC circuits, battery energy storage systems and UPS.

Arc flash barrier design keeps solar equipment more safe and reliable.

For DC circuit over-current protection.

2 Pole, 600V, 20A

$55.07
$55.07
Sale Sold out

Features

Specifications

Product Support

  • Non-polarity DC breaker
  • Up to 1200V 63A
  • IEC-60947.2
  • Breaking Capacity: 6kA
  • Arc flash barriers keep the systems safety
  • IP65 PC enclosure is optional

Model BB1-63

Poles 2P

Standard IEC60947.2

Utilization Category DC-21B

Rated Operational Voltage (Ue) 600V

Rated Current 20A

Mechanical Cycle 20000

Electrical Cycle 1000

Protection Degree All Sides IP40, Connection Terminal IP20

Polarity No Polarity

Certificate TUV

Click on the links to view/download additional resources.
Data Sheet
