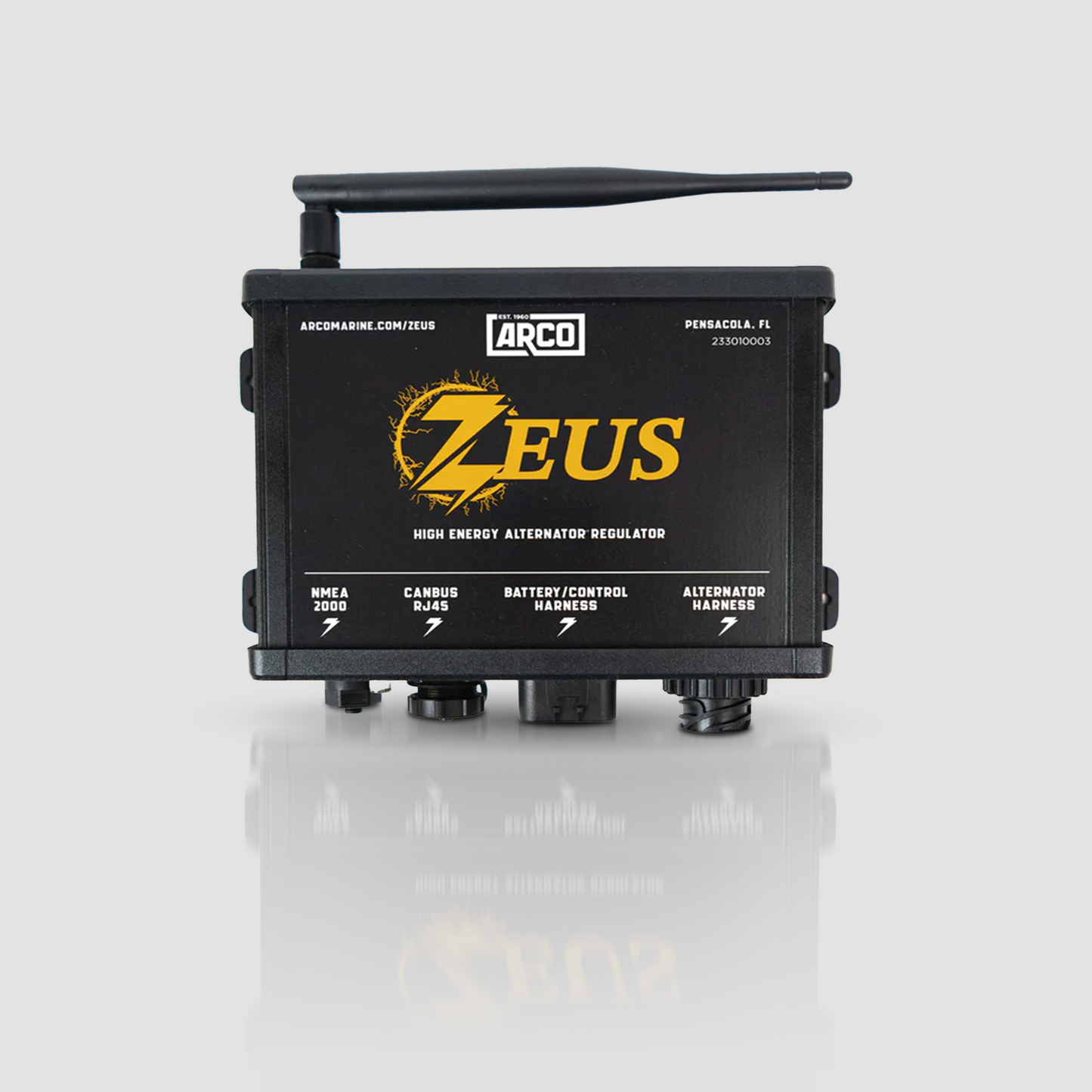

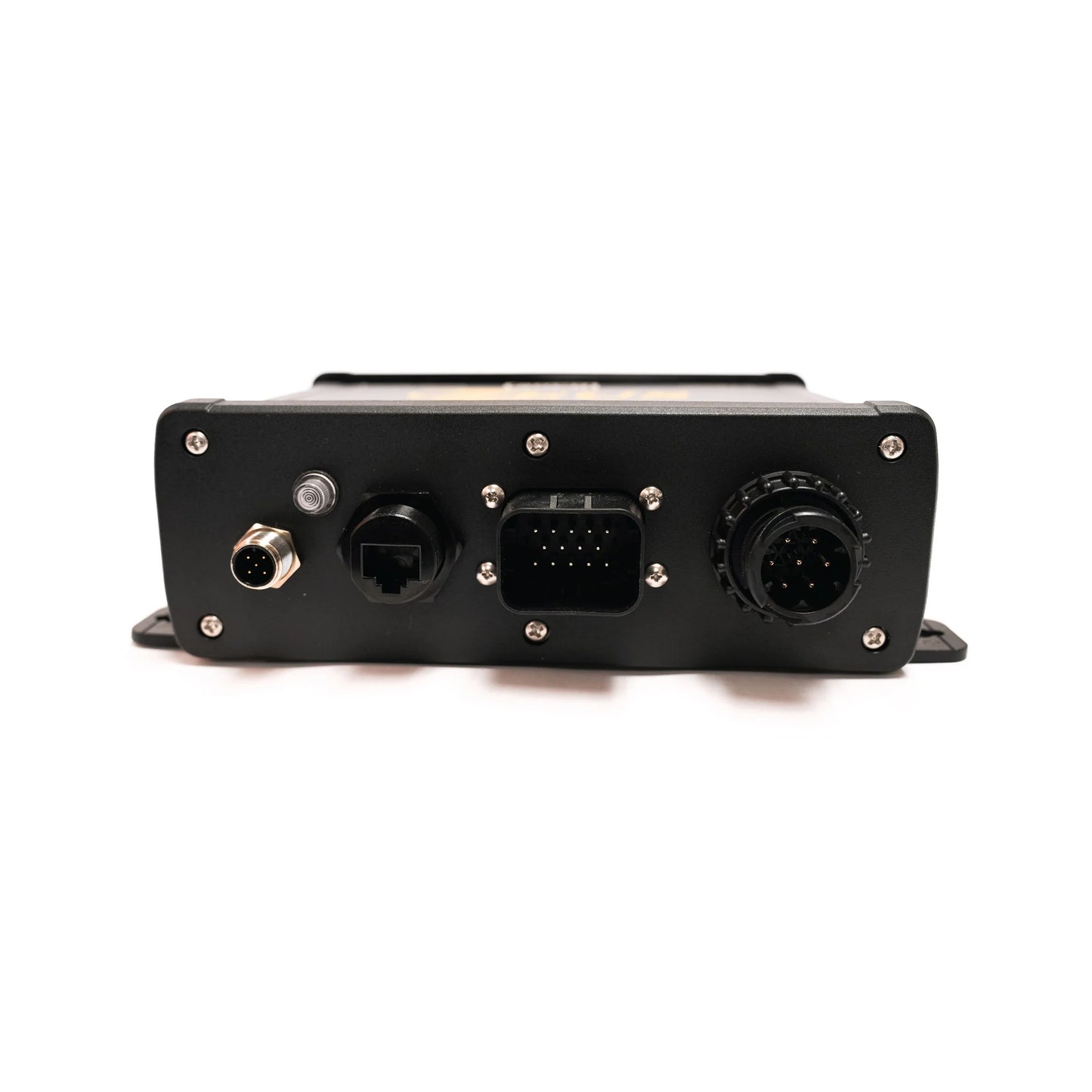

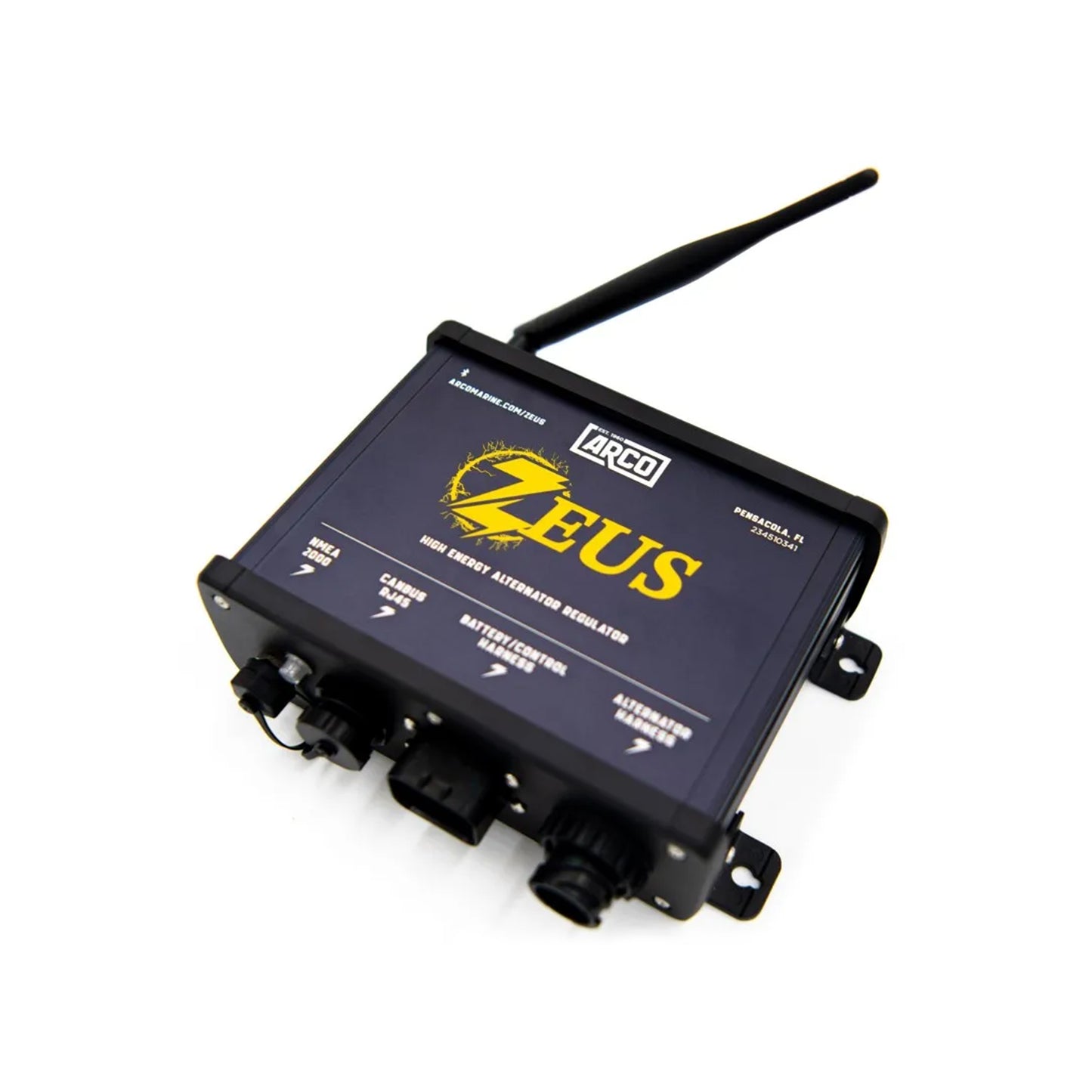

ARCO Zeus High Energy Alternator Regulator

ARCO Zeus High Energy Alternator Regulator

ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you have access to information on your system that you never had before. This information allows you to regulate your system and optimize your battery charge and alternator output resulting in a safer experience while protecting your energy system investment.

Regular price $1,200.00
Regular price Sale price $1,200.00
Sale Sold out

Features

Specifications

Product Support

Secure Bluetooth connection for easy installation, configuration, and updates

Harnesses, Thermistors and NMEA 2000 kit included - Zeus comes with both a battery wiring harness and alternator wiring harness as well as 2 thermistors and the NMEA 2000 kit ($159 in savings)

Native ARCO Zeus application on mobile/tablet for easy to use and intuitive dashboard, system information, and a myriad of pre-set and customizable regulator settings. (Compatible with iOS and Android.)

State of Charge – Zeus is the first to the market regulator with built in State of Charge which eliminates the need for an additional state of charge monitor

Generator Mode – Is a first to market advanced feature of ARCO’s Zeus is that it can turn your engine into a dedicated generator with a press of the button, whereby it focuses the alternator’s performance to the creation of energy in replenishing your battery bank quickly. This sustainability feature enables you to use less fuel to drive energy to your alternator.

Pre-set battery libraries – Whether you are using Lithium (LiFePo4) batteries to lead-acid Deep Cycle batteries, ARCO Zeus has you covered with its growing pre-set battery libraries.

Data logging and sharing - Log your alternator’s performance and settings wirelessly and automatically. Communicate setting files and performance logs with a push of a button to technical support as well as import and automatically configure a technician's recommendations remotely.

CAN bus and NMEA 2000-integrated networks enable you to transmit relevant data to RV navigation systems, multifunction displays (MFDs), or marine chart plotters

Compatible with all voltage systems - 12-48 volt compatible

Bluetooth Yes (Password Protected)

2 Feature-in ports To physically control user selectable options

1 Feature-out ports For lamp or control relay for multiple user options

RJ45 Yes

NMEA 2000Yes

2 CAN connections Yes

Dedicated Signal Wire To disable charging from an external source such as BMS

Management Native Application built and managed by ARCO allows users to wirelessly install, monitor, system diagnose, and adjust settings.

System Voltage 12V, 24V, 36V, 48V

State of Charge Yes (SOC)

CE mark Yes

Generator Mode™ While in neutral and using less fuel, the alternator will maximize the engine’s power and put 100% of the field into charging batteries.

P-Type (B-Circuit) and N-Type (A-Circuit) Compatible Yes, with wiring harness included.

Waterproof Yes, IP 66/67 rating.

Regulator Optimization Only alternator regulator that measures and reacts to inputs from the Battery current and temperature and the Alternator current and temperature.

Consistent Performance Operates at maximum performance within safety limits set by the user - Once the battery bank is full, it will continue to maintain and supply house loads while maintaining the full capacity of the battery bank.

Included Zeus High Energy Alternator Regulator, battery wiring harness, alternator wiring harness, 2 thermistors.

Enclosure Dimensions Without antenna: 8.2" x 5.9" x 2.4”, with antenna: 8.2" x 7.5" x 2.4"

Warranty 2 Years

Weight 1.7 lb.
